X-Master

Cutting mode

High definition plasma cutting

Input Voltage

110V / 220V

Frequency

50 / 60Hz

Cutting size

3000 * 1500 mm

Input power

3600w

Drive motor

Panasonic servo motor

Reducer

1:25

CNC controller

IPC

Plasma Power Source

ArcBlitz HD

Running Cutting Speed

0 – 20000 mm/min

Tolerance

≤ 0.3mm

Height Control

Automatic voltage THC
Varastossa
SKU
X-Master
Kysy lisätietoja

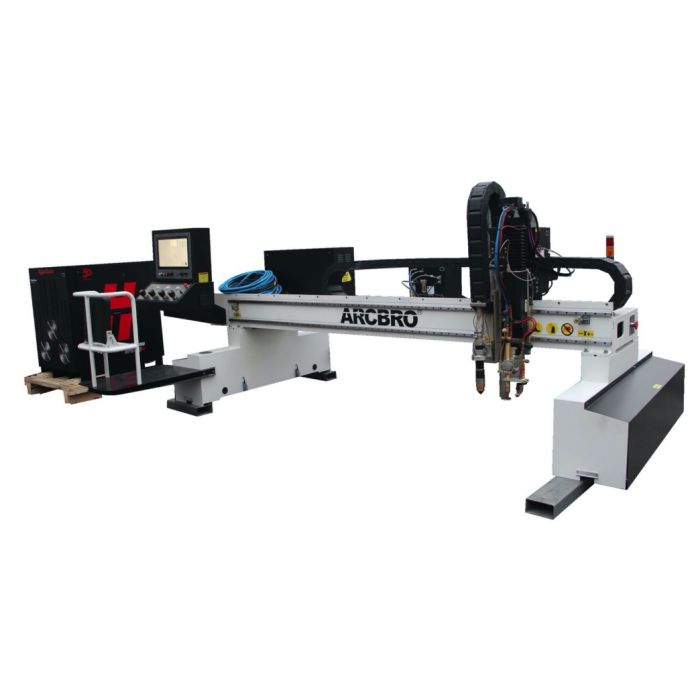

HEAEY DUTY HD PLASMA CNC GANTRY CUTTING MACHINE

Overview

The Gantry plasma cutting machine – X Master, available exclusively from Arcbro, challenges the concept of the traditional plasma cutting industry: High productivity, high cutting quality, Precise cuts at fast speeds reduce secondary operations and streamline your manufacturing processes, which in turn reduces costs and increases production, built-in integrated cutting process, perfect round hole for one-button cutting, and reliance on worker skills.The new process is called high definition plasma cut, which is a leap in every aspect in plasma.



Standard Features

Cutting function: High definition plasma cutting

Cutting Size: 3000x12000mm

Cutting Tolerance:  Within iso range 3



High Definition Plasma

High definition plasma cutting is a new technology that has been around for less than a year. It is completely different from traditional plasma cutting.

Experts in the cutting industry know that plasma cutting quality is affected by six factors: current, gas, Pierce technology, led in/out technology, cutting speed, timing. These six factors are independent of each other in traditional cutting. Only experienced and skilled workers can combine them and complete a high-quality cutting.

Perfect hole!

No matter how skilled the craftsman of a craftsman is, due to the shape of the plasma flame itself, there is always a taper in the small hole. The upper and lower edges of the metal have different apertures, which necessitates that the holes must be cut to fit into the bolts. Small holes and bolts are the most widely used plasma cutting applications.
