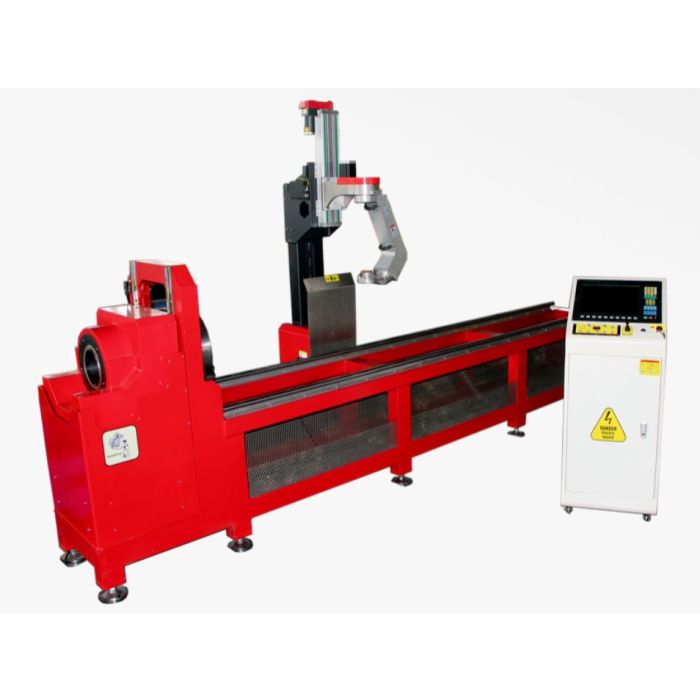

TUBE PRO

Type Tube  Pro
Effective diameter area (mm) φ25-φ600mm
Longitudinal travel >=3000mm(10ft), as long as you want
Bevel angle Manul bevel/Auto bevel =<45º
Input voltage Single phase, 110/220V
Power frequency 50/60Hz
Cutting mode Plasma cut (Flame cut is optional)
Plasma  power  source Air  plasma  power  source  optional
Driver motor Hybrid  servo drives
Groove Infinite rotation
Cutting  speed 1~6,000mm/min
Running  speed 1-8000mm/min
THC Arc Voltage THC & Pneumatic THC (capacitive THC is optional)
Internal library shape library
Language English, Chinese, Spanish, Russian, French, Japanese, Czech, etc.
Temperature 1-40°C (34-104 °F)
Varastossa
SKU
TUBE PRO
Kysy lisätietoja

CNC PIPE PROFILE CUTTING MACHINE

Overview

ArcBro Tube Pro was designed and developed to increase production and improve accuracy for your pipe cutting needs. Cutting tube diameter between 50 to 400mm (maximum 600mm),Ideal for use in food processing, construction, pipe frame, light industry. Our innovative infinite rotation cutting head, Hypertherm’s plasma systems, the Libellula Tube software, and our small footprint design are combined to produce one of the industry’s best pipe cutting machine.



Standard Features

  • Effective cutting size: φ30-600mm, 3000/6000/12000mm long
  • 4-axis
  • Starfire SF-5210XG system
  • HYD PTHC200DC-PT
  • Infinite rotation structure
  • Fastpipe 4-axis software
  • Leisai 86/57 servo motor
  • Silver-plated square rail



PRECISION CUTS WITH PERFECT BEVEL

The patented INFINITE ROTATION SYSTEM™ with freedom of movement in tilt and rotation can precisely cut straight through and create bevels up to a 45 angle. Arcbro uses the minimum amount of axes with precise eclectic motors to cut accurately every time.

The patented infinite rotation system™ with freedom of movement in tilt and rotation can precisely cut straight through and create bevels up to a 45 angle.

 Tube PRO 1

Tube Pro esim1 Plasmaleikkuri putkelle Plamaleikkuri putkikappaleelle



SUPERIOR MOTION CONTROL

The outstanding  motion control system and unique mechanical structure bring you a variety of difficult tube cuttings that can be done easily and concisely.

THREE-JAW CHUCKS ensure flexible loading.

The universal wheel makes the cutting of the pipe any position simple and easy.

Tube PRO 2
