Shindoh A1+
Sindoh A1+
High Precision SLA 3D Printer
Open materials
A1+ can be used with Sindoh proprietary resin, as well as different types of resins through the Open Material function. In addition, the laser power can be controlled for more efficient printing.
Smart Printing Performance
Optimized settings of supports and rafts will be predetermined according to the shapes and placements, and then auto generated in order to achieve the best printing results.
Build Size Benefit
Max. build size of 200 x 200 x 180mm improves your productivity by printing out all different sizes and shapes at once.
Stable and Stylish Printer Exterior
Functional and aesthetic design ensures that the printer looks very compact and stable despite its large build size.
Static Focusing System
Static Focusing System can achieve high-quality printing results by maintain consistent printing quality for center and edge of the printing object.
Sindoh A1+ SPECIFICATIONS |
|
|
|
|
|
Print Method |
SLA (Stereo Lithography Apparatus) |
|
Print Maximum Build Size |
200 x 200 x 180 mm |
|
Layer Thickness |
25㎛ ~ 100㎛ |
|
Laser Wavelength |
405nm |
|
Print Laser Power |
450mW Laser |
|
X-Y Resolution |
42.3㎛(Normal Quality Mode), 21.2㎛(High Quality Mode) |
|
Resin Types |
ABS-like, Dental Model, Open Materials |
|

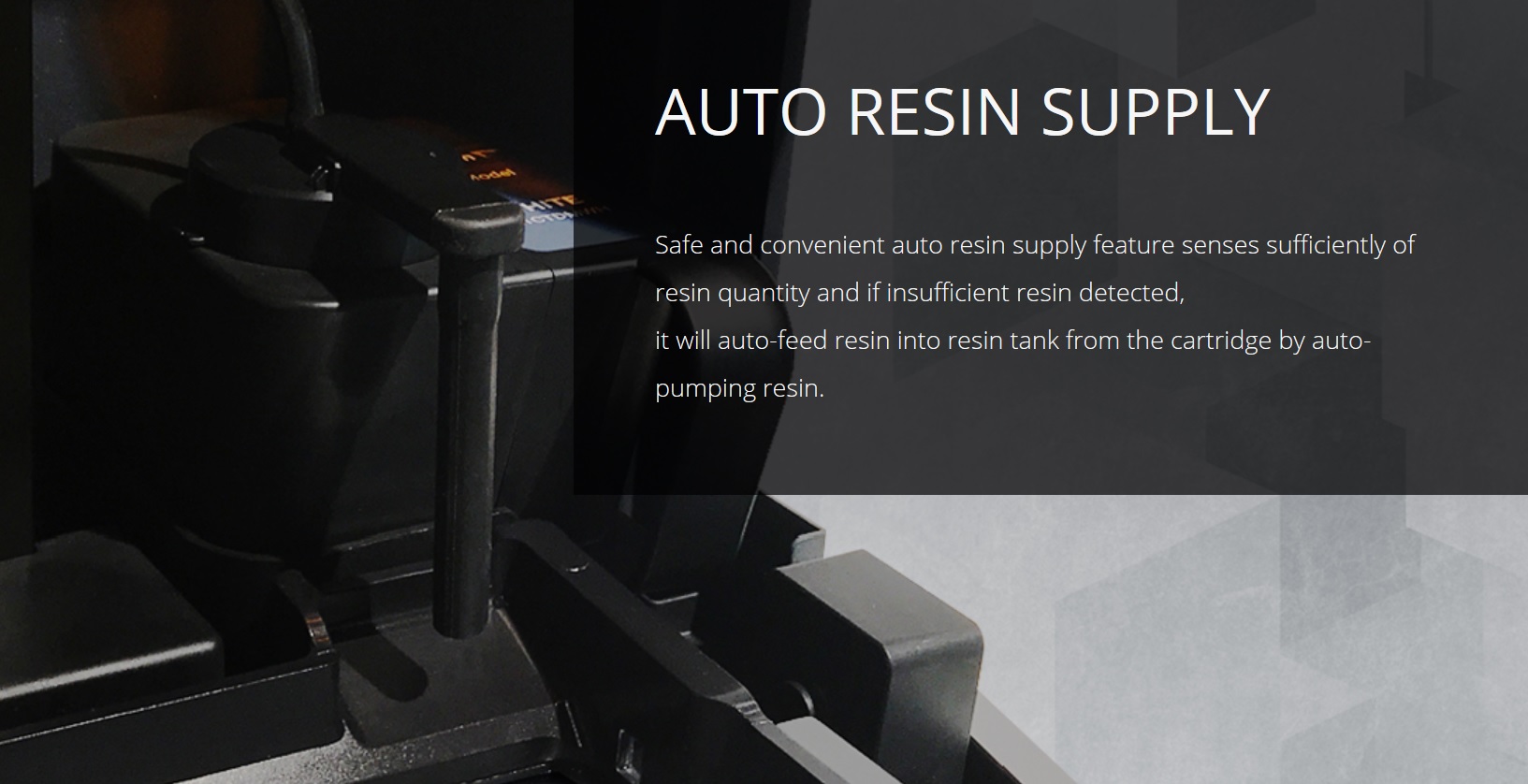

Resin Supply Method |
Auto |
|

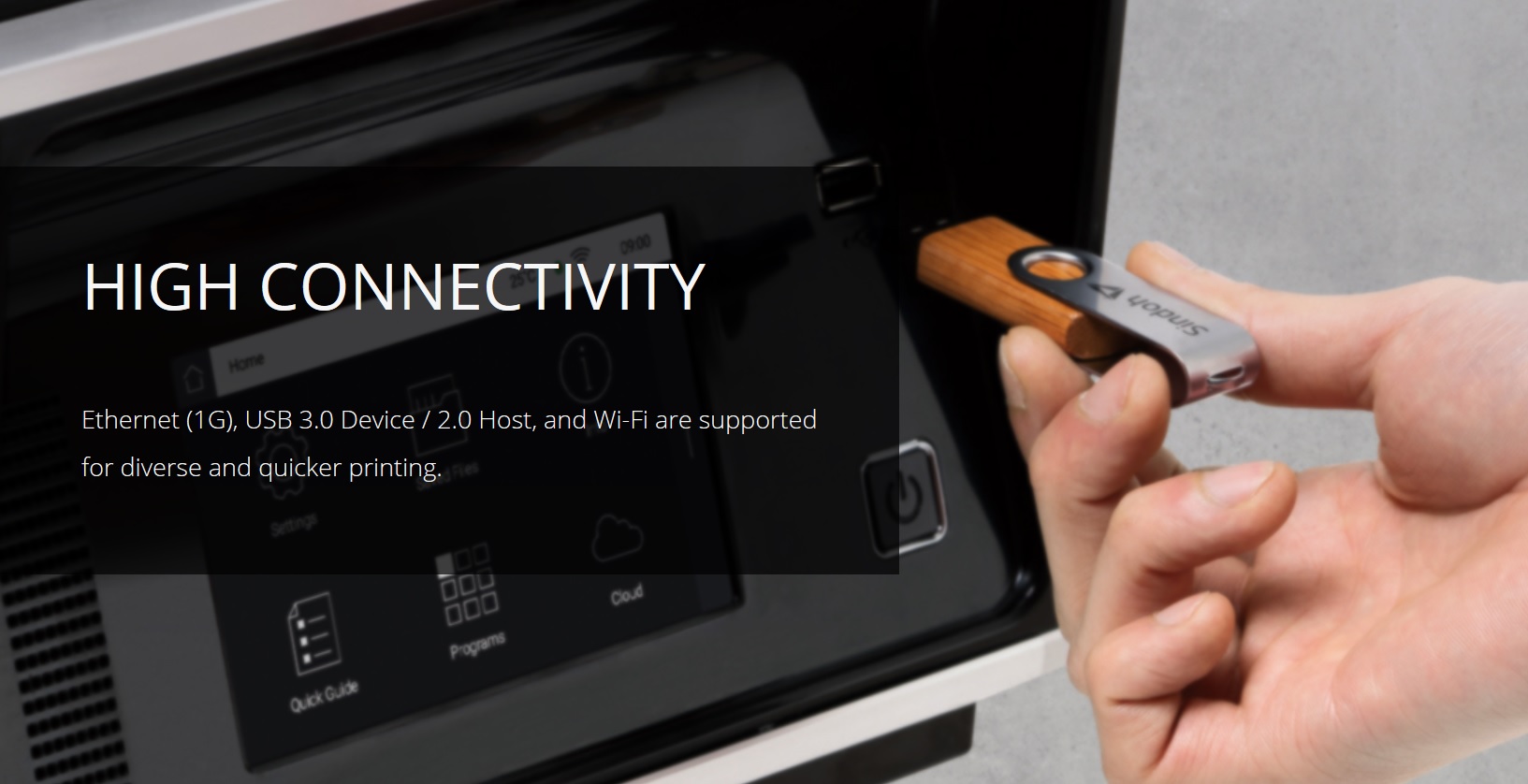

Interface |
Ethernet (1G), USB 3.0 Device / 2.0 Host, Wi-fi |
|

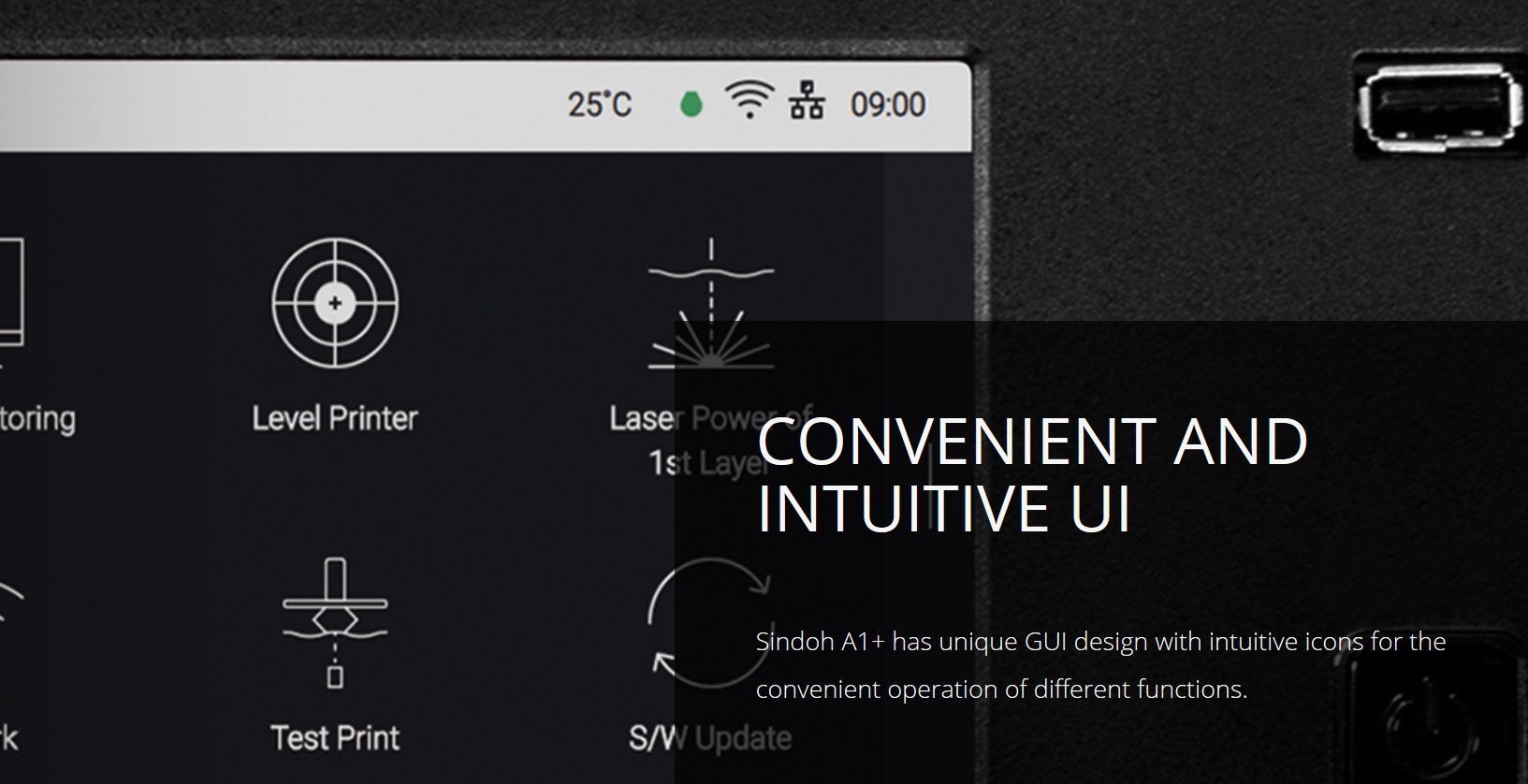

GUI |
5”Full Color Touch Screen |
|
Heater Method |
Chamber Heating |
|
Memory (Default) |
2 GB |
|
Printer Size (W x D x H) |
445 x 500 x 600 mm |
|
Printer Weight |
44 kg |
|
Additional Features |

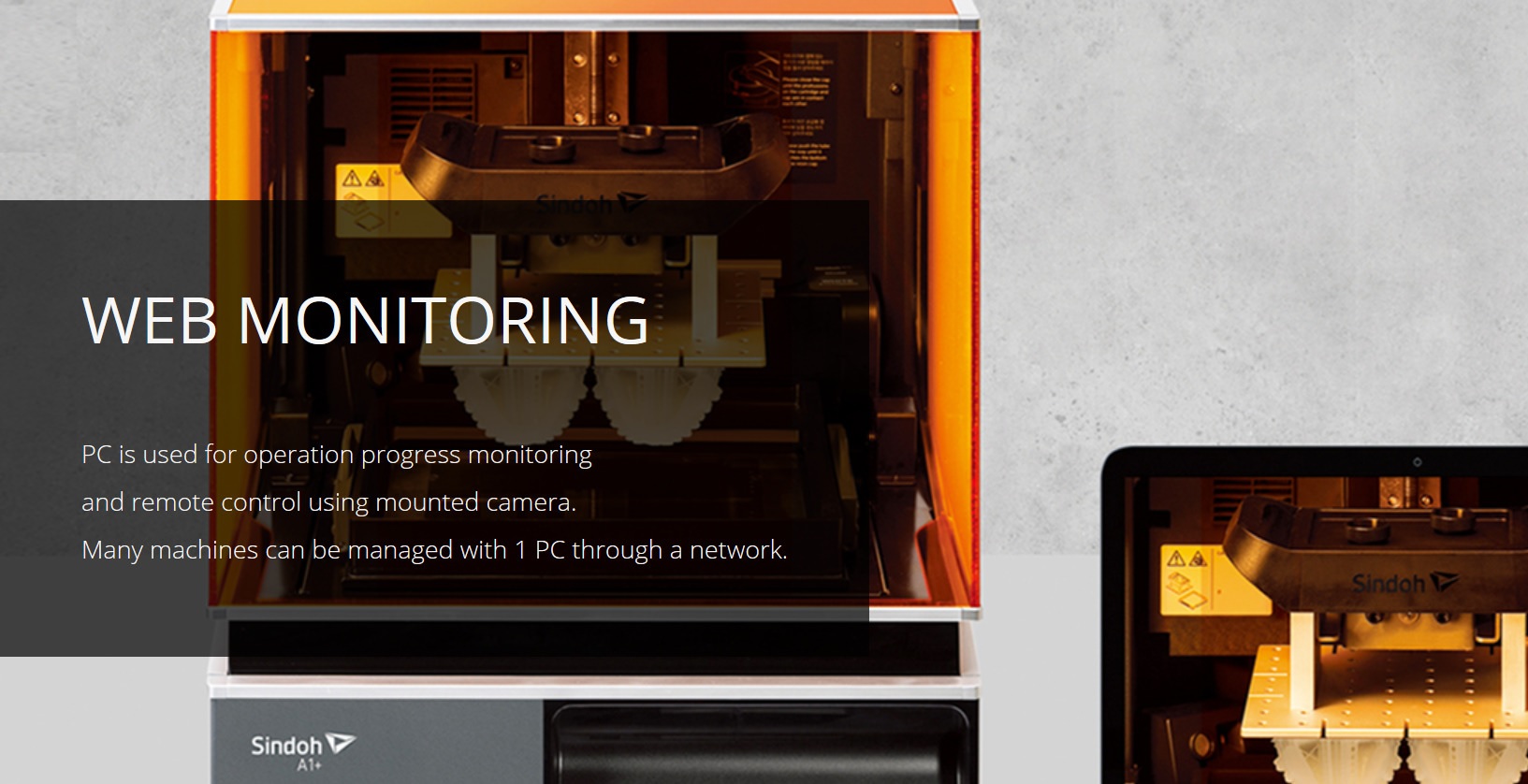

Play Back (AI) Web Monitoring (PC) |
|
Slicer OS |
Win10 64 bit |
|
Slicer Memory |
Lowest : 8G / Recommend : More than 16G |
|
Slicer Graphic |
Open GL 4.0 |
