Coiled Fiber Laser cutting machine

Maximum coil weight: 10T
Feeding speed: 0-10M/MIN

Safety and environmental protection CE/FDA

Applicable materials



Cold rolled coil, galvanized coil, stainless steel coil, aluminum coil

Working Area(mm)

3000*1500

Working Area(in)

118*59

Laser power

1kw/1.5kw/2kw/3kw/4kw

Material thickness

0.5-2mm

Material width

500-1500mm

Maximum outer diameter of material

Φ1500mm

Maximum coil weight

10T

Material inner diameter

Φ508/Φ610mm

Feeding accuracy

±0.5mm (calculated by 1000mm)

Feeding speed

0-10M/min (stepless speed regulation)

Varastossa
SKU
Coiled Fiber Laser cutting machine
Kysy lisätietoja

SENFENG fiber laser blanking system combines a fiber laser cutting machine with an automatic metal coil feeding system resulting in an efficient coil fed laser cutting solution.Laser blanking  reduces power consumption compared to its alternatives, such as press lines and results more efficient and flexible.The automatic design of the whole process, which is from loading-uncoiling-leveling-cutting saves labor, realizes the net cutting of coil materials, and improves the utilization of sheet materials.

Features of fiber laser blanking system

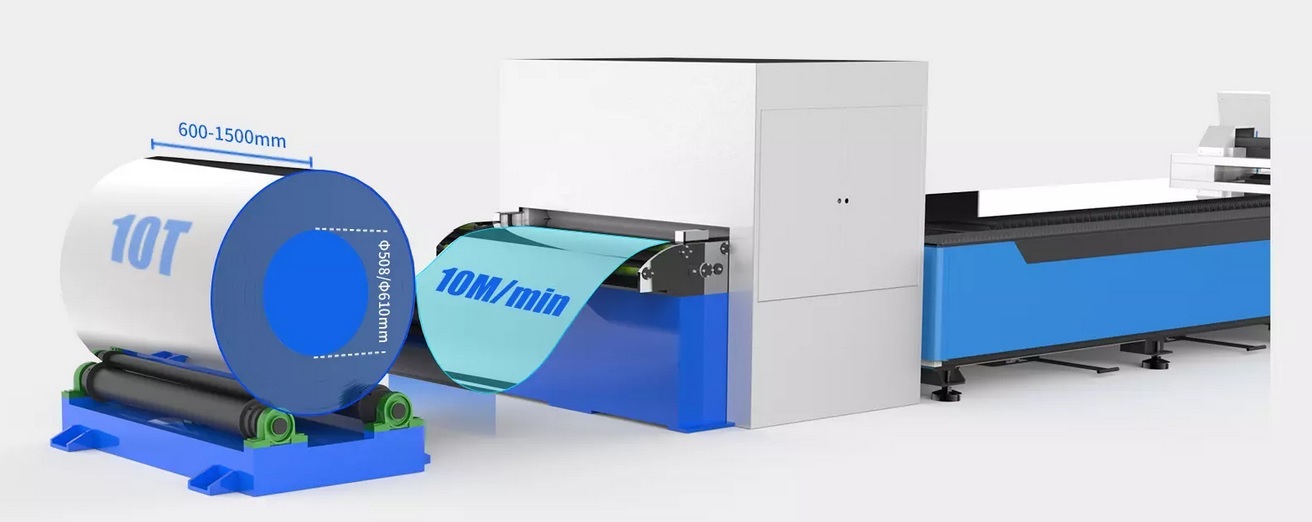

High work efficiency and cost saving

The load-bearing capacity of the single-support uncoiler is 10 T, and the feeding speed of uncoiler is 0-10m /min (stepless speed regulation).

Coiled Fiber Laser cutting machine

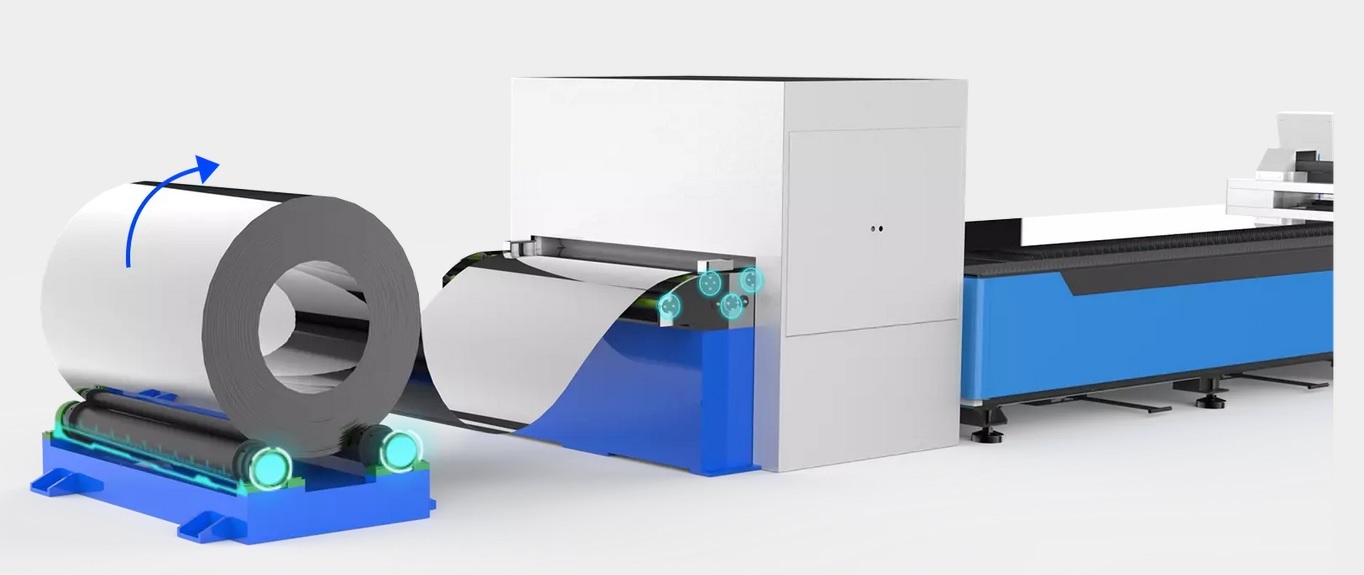

Leveling sheet metal, eliminating the stress

After the coil is uncoiled, the plate is leveled by the leveling machine, and the stress of the plate during the leveling process is eliminated, so that the plate is smoother and a better cutting experience is obtained.

Coiled Fiber Laser cutting machine 2

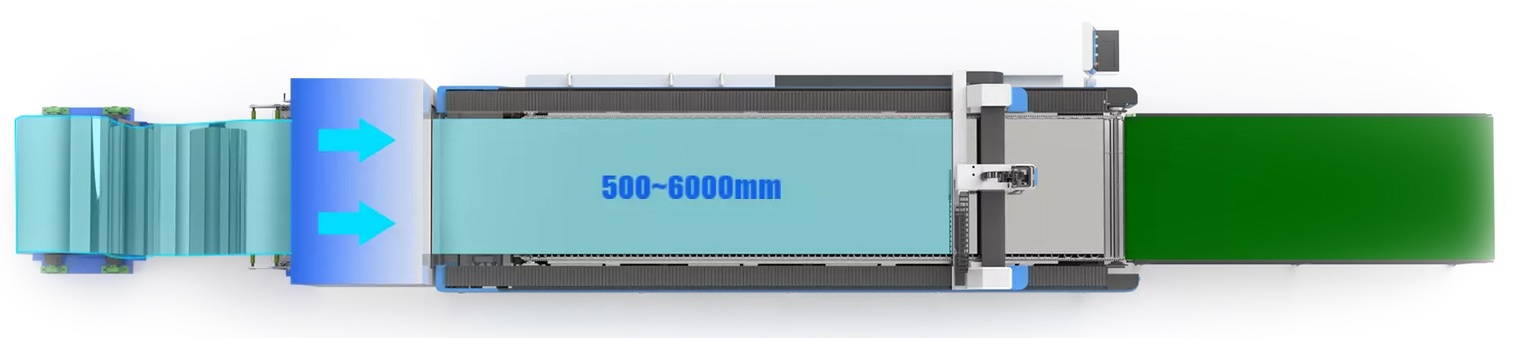

High precision positioning and rectifying process

The special screw nut is used to drive the rectifying roller to install the slide block, so as to realize the positive orientation of the plate ,no need laser edging and save the cutting time of the plate.

Coiled Fiber Laser cutting machine 4



High precision transmission structure

Ultra-precision transmission system is adopted, high transmission accuracy.

Coiled Fiber Laser cutting machine 5
