5-akselinen 1224

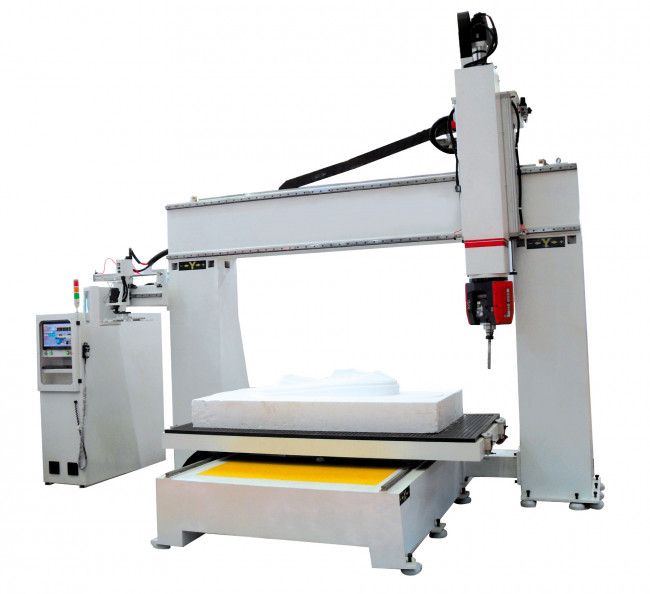

5-Axis SHWMS1224
  Adopt Europe OSAI numerical control system, high machining accuracy and high speed. The Japan THK rails.and the Germany original rotating arm ensure the accuracy and strength of the mechanical

 Z-axis travel can be heightened to 2.1 meters, so that very suitable for processing large-scale three-dimensional surface..
Intelligent processing cross-border protection function can prevent mechanical collision due to excessive processing of design file.

 Diversified control processing speed can control the working speed, traveling speed, dropping tool speed, lowering tool speed, greatly improve the quality and efficiency.
Applicable industriesMold industry: various large metalloid mould, especially suitable for automotive foam mold, wooden ship model, wooden model aviation, rail wooden mold, wooden mold train.Instrument industry:? 3-d surface engraving and shape cutting of large-scale instruments,
Tuotenumero: 5-Axis SHWMS1224

Saatavuus: Varastossa

Veroton: 0,00 € Verollinen: 0,00 €
Kuvaus
Yksityiskohdat

5-Axis SHWMS1224   Adopt Europe OSAI numerical control system, high machining accuracy and high speed. The Japan THK rails.and the Germany original rotating arm ensure the accuracy and strength of the mechanical  Z-axis travel can be heightened to 2.1 meters, so that very suitable for processing large-scale three-dimensional surface.. Intelligent processing cross-border protection function can prevent mechanical collision due to excessive processing of design file.  Diversified control processing speed can control the working speed, traveling speed, dropping tool speed, lowering tool speed, greatly improve the quality and efficiency. Applicable industriesMold industry: various large metalloid mould, especially suitable for automotive foam mold, wooden ship model, wooden model aviation, rail wooden mold, wooden mold train.Instrument industry:? 3-d surface engraving and shape cutting of large-scale instruments,



PARAMETERS

Item SHWMS1224
X, Y, Z Travelling Area 3100*1850*950 mm
Working Area 1220*2440*600 mm
Table Size 1250*2500 mm
Transmission Y- Rack Pinion, X,Z - Ball Screw
Table Structure T-Slot Movable Table
Spinidal Power 7.0 KW HSD Spindle( Option:10.0KW HSD HS655)
Spinidal Speed 1000-22000r/min
Driving System Servo Motor
Speed Max Travelling Speed: 40000 mm/min
Max Working Speed: 15000 mm/min
Working Voltage AC380V/50Hz
Command Language G code. F/S
Operating System OSAI
Gross Weight 7500 KG
